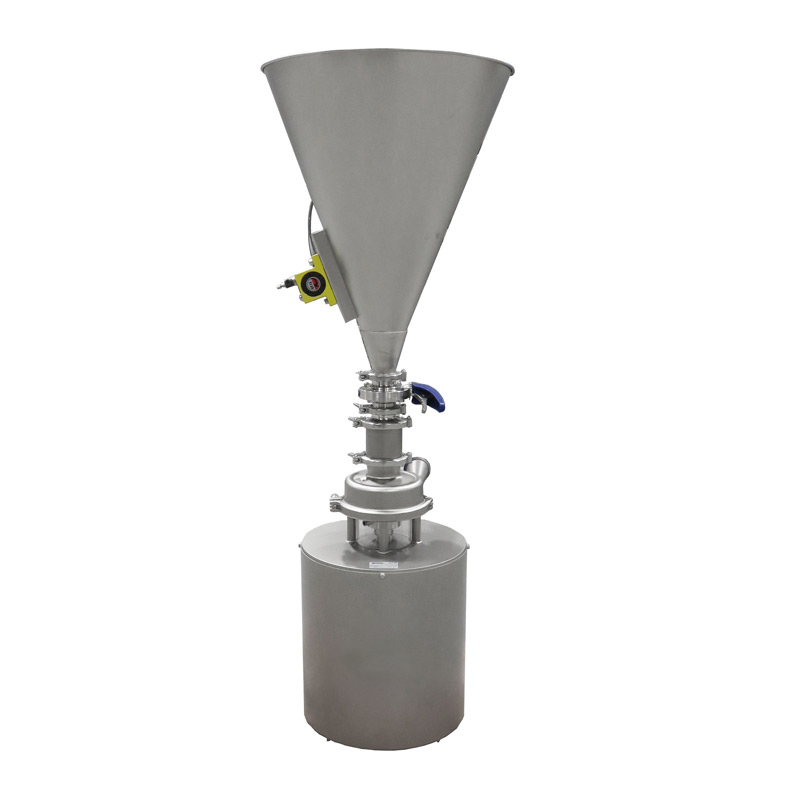

Powder liquid Blender
- The Mixers are essential equipment for dissolving all pharmaceutical, food, and chemical products.
- Mix and dissolve various types of high-viscosity products in different forms, depending on the product’s nature.
- Solids are drawn out and dissolved easily as they pass through the mixer body.
- Regulating the entry of solids by a valve located at the bottom of the funnel.
- The mixers are characterized by long life, high performance, and low maintenance cost.
Technical Data
| Style | Mixer’s body | Productivity (L/h) | Powder extraction rate (Kg/h) | Liquid withdrawal amount (Liters) | Inlet and outlet | Inlet diameter (Inch) | outlet diameter (Inch) |
| VPL-226 | 316L | 33000 | 3000 | 43 | Tri-clamp | 1.5 | 2 |
| VPL-440 | 316L | 65000 | 9000 | 60 | Tri-clamp | 3 | 2 |
Recommendations:
- Measured on water Actual productivity depends on product viscosity density and product conveying area Productivity was calculated for water density.
- Maximum temperature: (20-30) ºC (The temperature varies depending on the type of gasket used).
Additional information
| Type | VPL-226, VPL-440 |
|---|
Main parts
- The mixer basically consists of a vertically mounted centrifugal pump casing and impeller.
- Complete mixing with material recycling.
- In some applications, it can be used in a single line without recirculation.
- Easy to install and disassemble with clip connections.
- The unit can be cleaned without disassembly.
- Single-layer material seal.
- Temperatures up to 40°C for the M-226 model.
Option
- Mechanical coolant seal (quench).
- Hopper vibrator.
- Automatic valve + sanitary sensor for low solids level.
- Automatic butterfly valves in the mixer and pump.
- Sanitary sensor for high solids level.
- Control panel, automatic valves.
- Hopper grid.
- ATEX version available.
- Internal surface finish: Ra ≤ 0.5 µm
