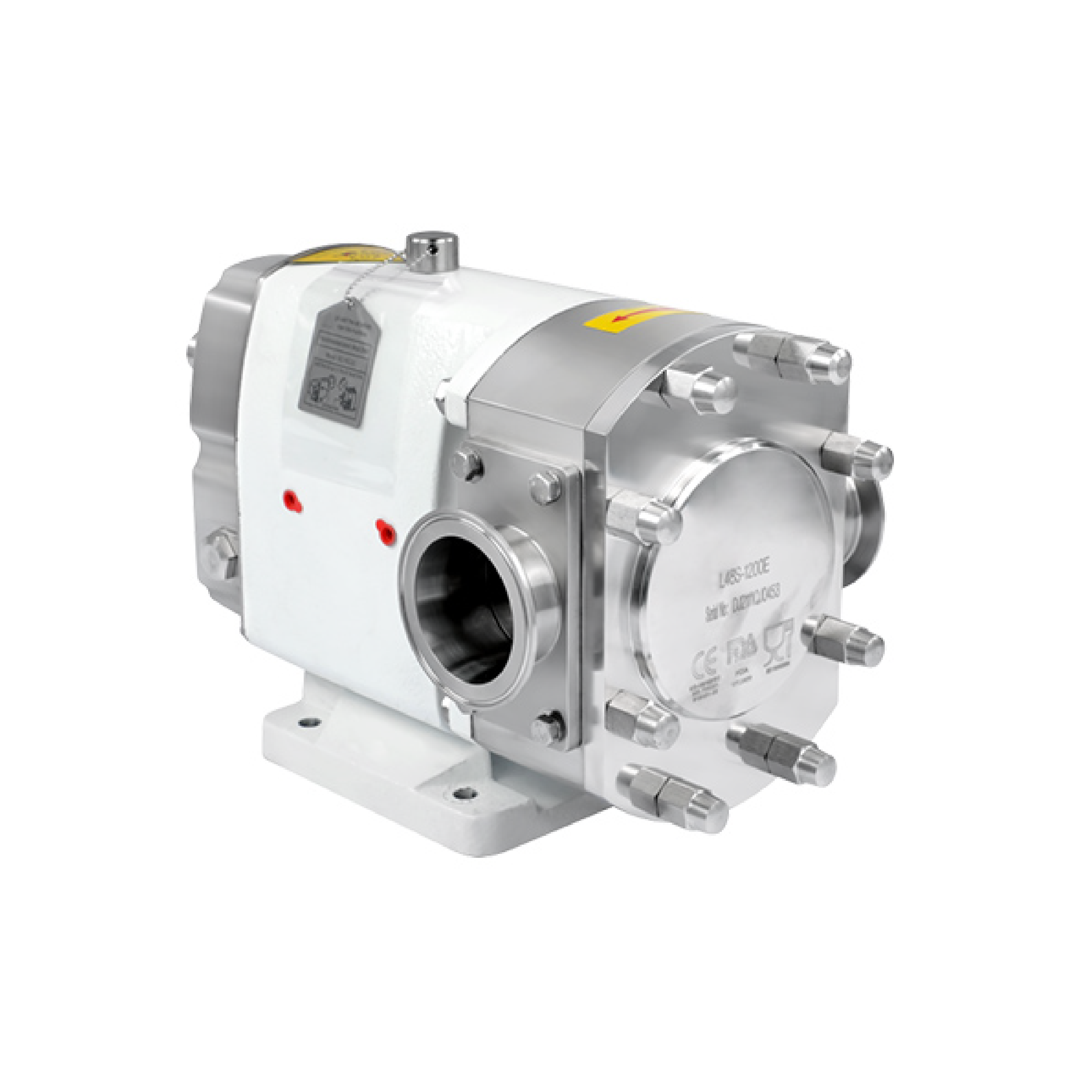

Lobe pump

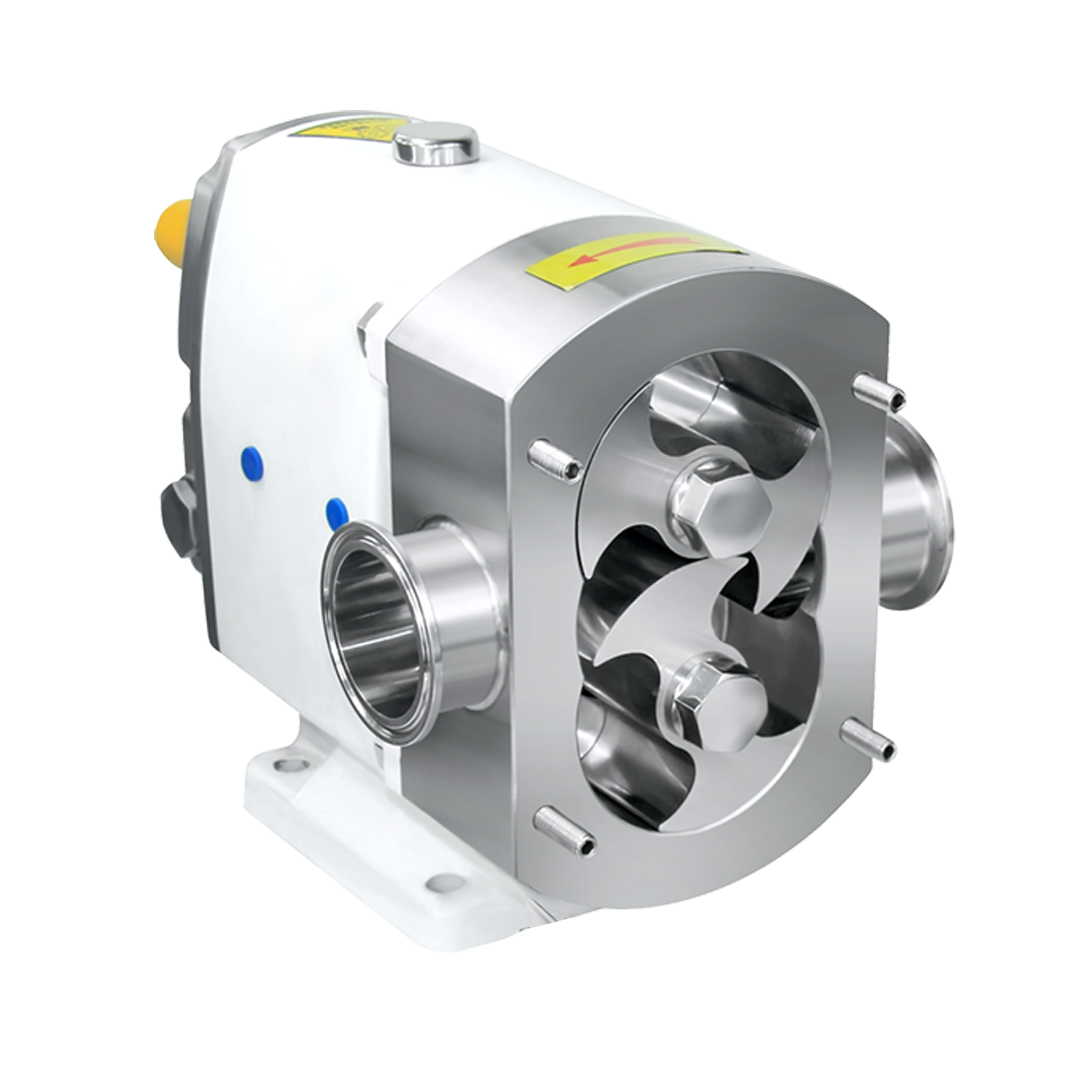

Lobe pump - Image 2

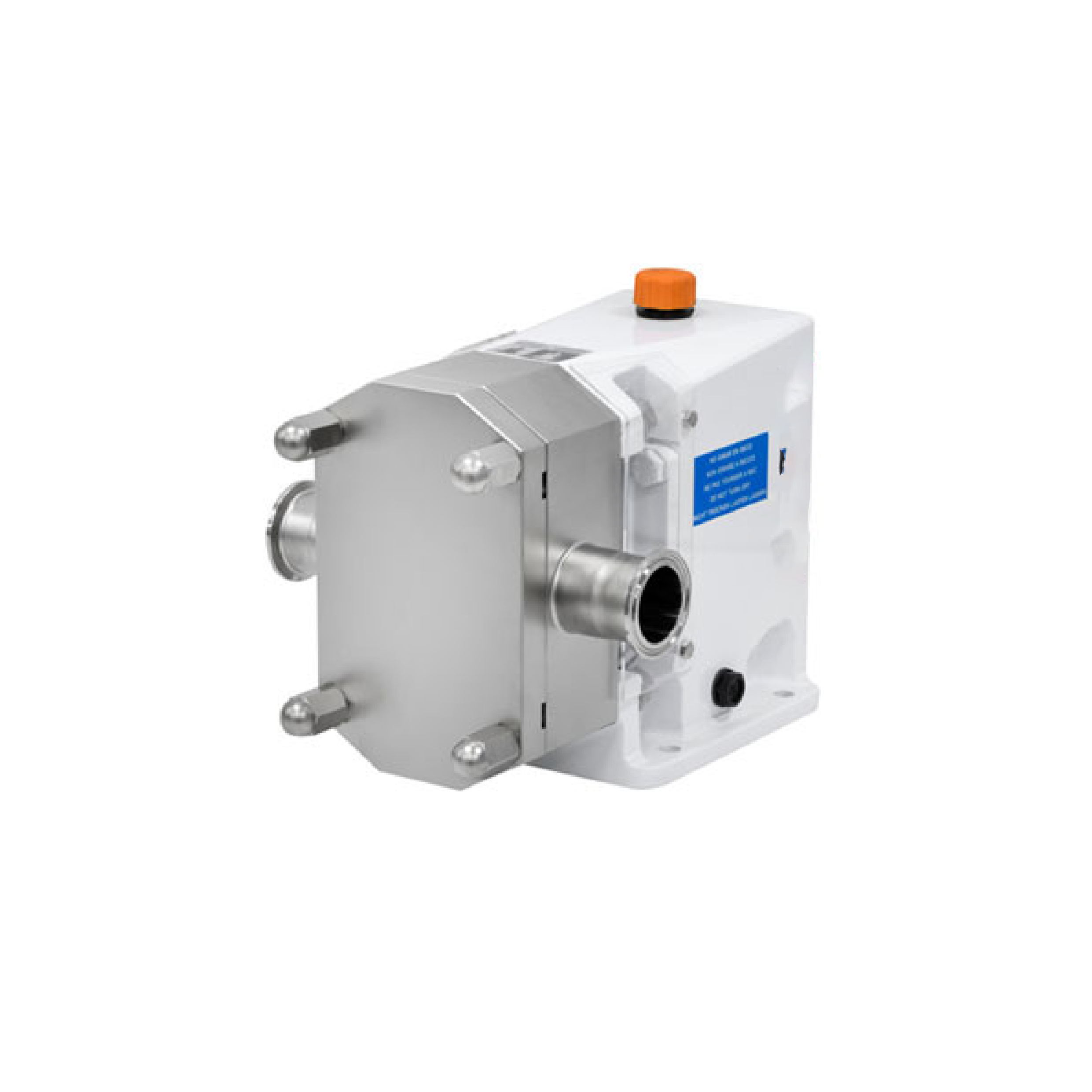

Lobe pump - Image 3

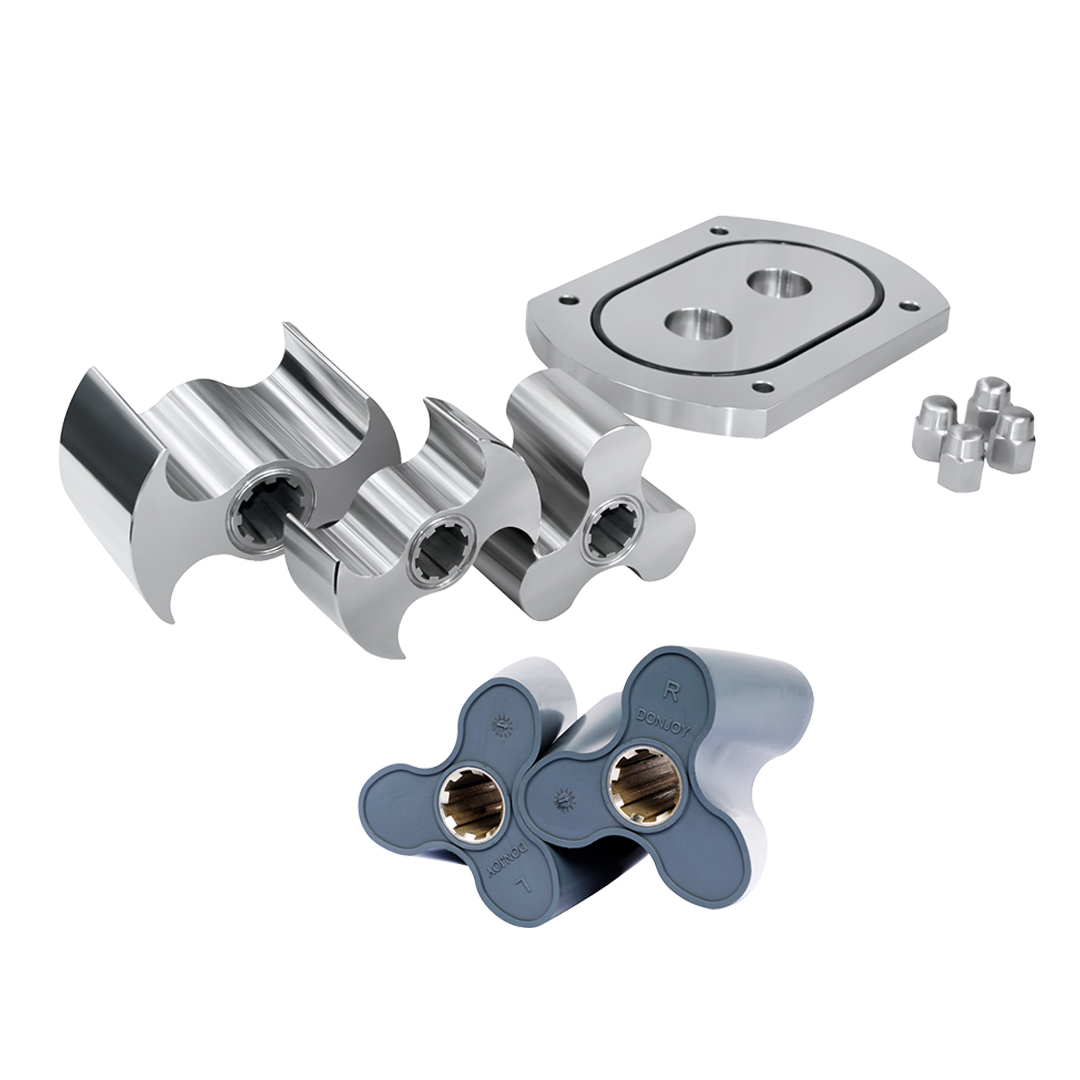

Lobe pump - Image 4

Lobe pump

  • The lobe pump is a hygienic design suitable for transporting pharmaceutical, food, and chemical such as (Suppositories, ointments & creams, medical and cosmetic, lotions, shampoos, chocolate, cheeses, dairy, paints and similar items) .
  • This pump is ideal for all types of liquids, whether low or high viscosity In different forms depending on the nature of the product .
  • The product is transferred through rotating parts.
  • The pump  featured high efficiency, ease of use, and low maintenance.
Compare
Category: , , , , ,

Technical Data

Style Pump body Productivity (L/h) Product viscosity (cps) Pump inlet and outlet Inlet and outlet diameter(mm) pressure range (bar)
Lp-25 316L 500-1500 10.000-40.000 Tri-clamp 25 2-3
Lp-40 316L 500-2000 10.000-40.000 Tri-clamp 40 2-3
Lp-50 316L 500-3000 10.000-40.000 Tri-clamp 50 2-3
Lp-65 316L 500-4500 10.000-40.000 Tri-clamp 65 2-3

Recommendations:

  • Measured on water Actual productivity depends on product viscosity density and product conveying area  Productivity was calculated for water density.
  • The pump operates at a temperature ranging between: (-10/+90) ºC (The temperature varies depending on the type of gasket used).










Additional information






			type

Lp-25, Lp-40, Lp-50, Lp-65











Option


  • design to be (double jacket)
    •

  • design by adding a driving unit.
    •

  • Plastic control panel.
    •
