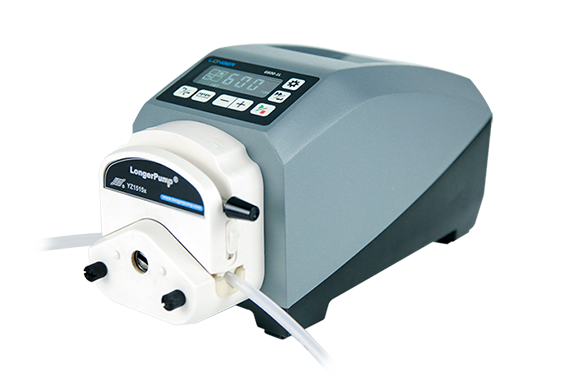

High IP Rating, Low-Flow Range Peristaltic Pump
High IP Rating, Low-Flow Range Peristaltic Pump - Image 2

High IP Rating, Low-Flow Range Peristaltic Pump

  • Compact structure, innovative design and small size.
  • The pump features reliable EMC performance and IP66 high protection rating which is suitable for damp and dusty environments.
  • With die-cast aluminum housing and powder coating offers exceptional corrosion resistance, to ensure the heat radiation and longevity lifetime.
  • The pump delivers flow rates from 0 to 3250ml/min.
  • The pump could be controlled through keypad, footswitch, external control interface and RS485 communication interface.
  • Store the running parameter automatically.
  • CE certification.
Category: , ,

Technical Data

Max. flow rate（Single Channel） 3250mL/min
Pump speed 0-650rpm，CW/CCW
Housing material Die-cast aluminum
Display LCD for speed，flow rate，volume and other parameters
Work mode Continuous mode; Time mode; Volume mode
Control mode Keypad control; Footswitch control; External control; Communication control
Calibration function Flow rate calibration; Volume calibration
External control Control function: start/stop，running direction，speed
Communication control RS485，Modbus RTU
Power supply AC100-240V，50/60Hz
Operating temperature 0℃-40℃
Relative humidity ＜90%
IP rating IP66
