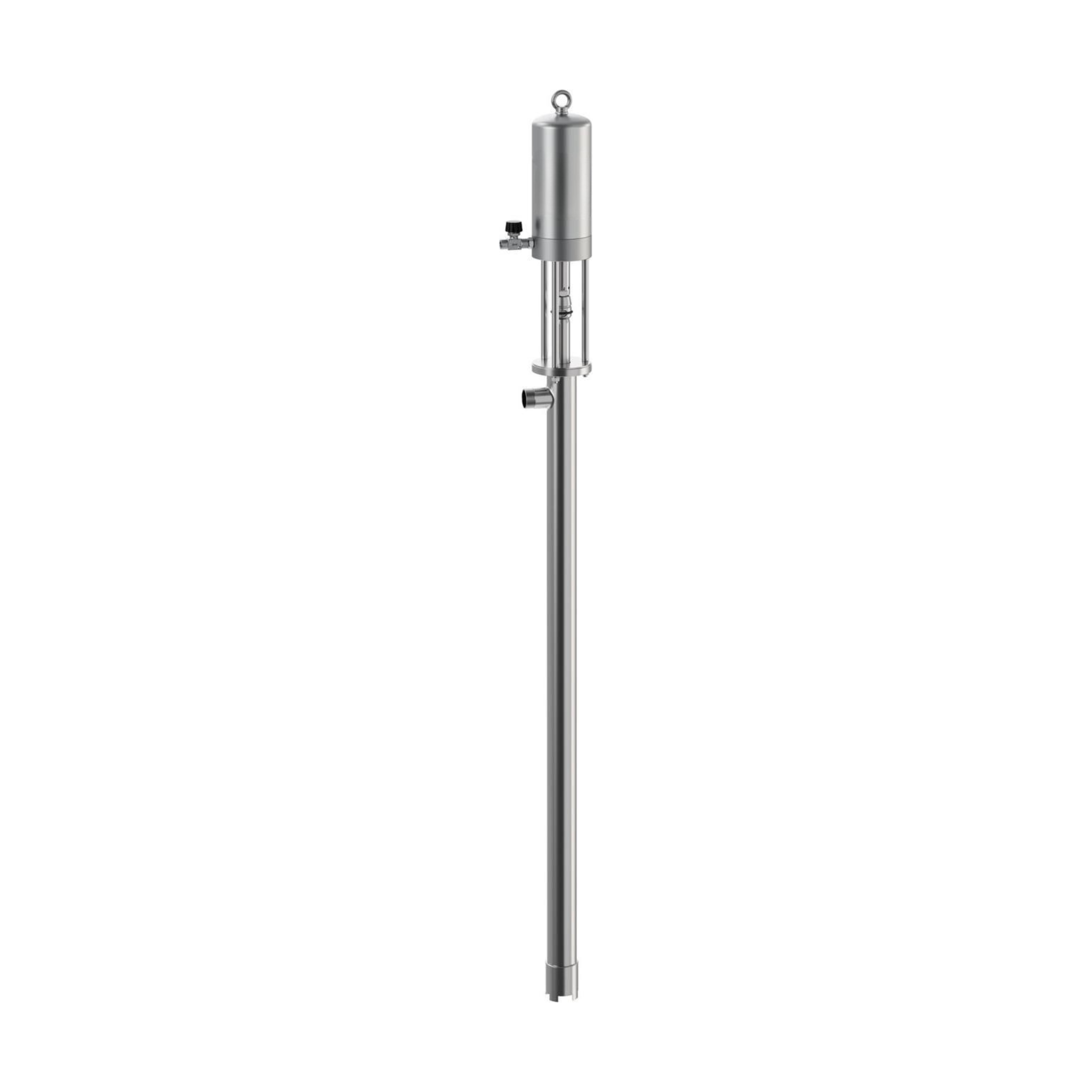

Drum Piston Pump

Drum Piston Pump

  • The vertical piston pump is essential equipment for transferring pharmaceutical, food, and chemical products and preparations, such as cosmetics (creams and shampoos), viscous chemicals, and acidic and alkaline substances. and similar items) .
  • This pump is ideal for all types of liquids, whether low or high viscosity In different forms depending on the nature of the product .
  • It can be used directly inside drums.
  • It operates with a check valve system for consistent pumping.
  •  The pump  featured high efficiency, ease of use, and low maintenance.
Category: , , , , , ,

Technical Data

Style Pump body Productivity (L/h) Product viscosity (cps) Pump outlet pipe diameter(mm) Outlet diameter (mm) pipe length (mm) Air consumption amount (m3/min) compressed air (Bar) temperature

(ºC )
LDV-P840 S.S 304 500-3000 0.4-120.000 Threaded 55 32 840 0.3-1 3-10 5-60

recommendations:

  • Actual flow rate depends on product viscosity and density, lift, product conveying area, and RPM. The flow rate is calculated based on water density.
