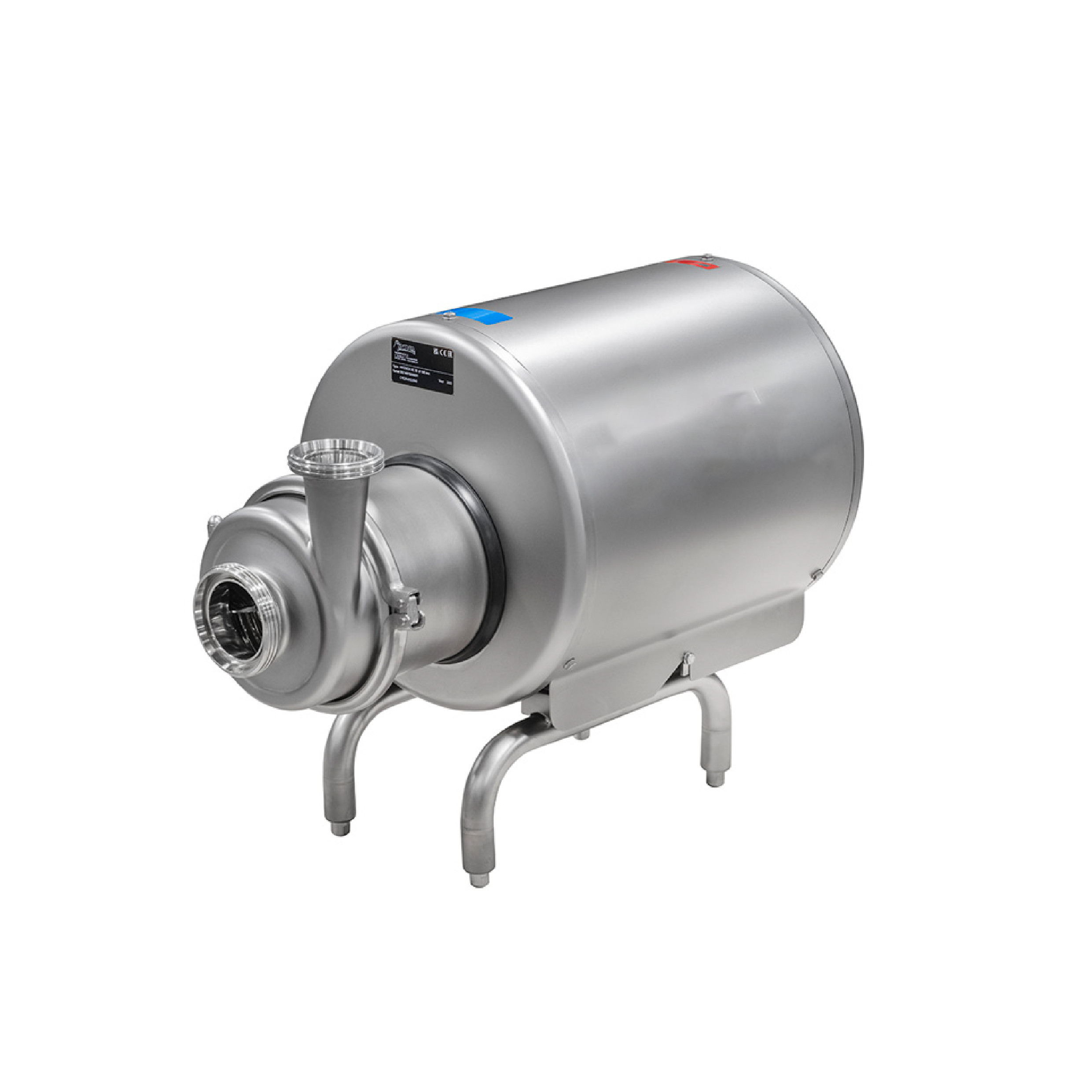

Centrifugal hygienic pump

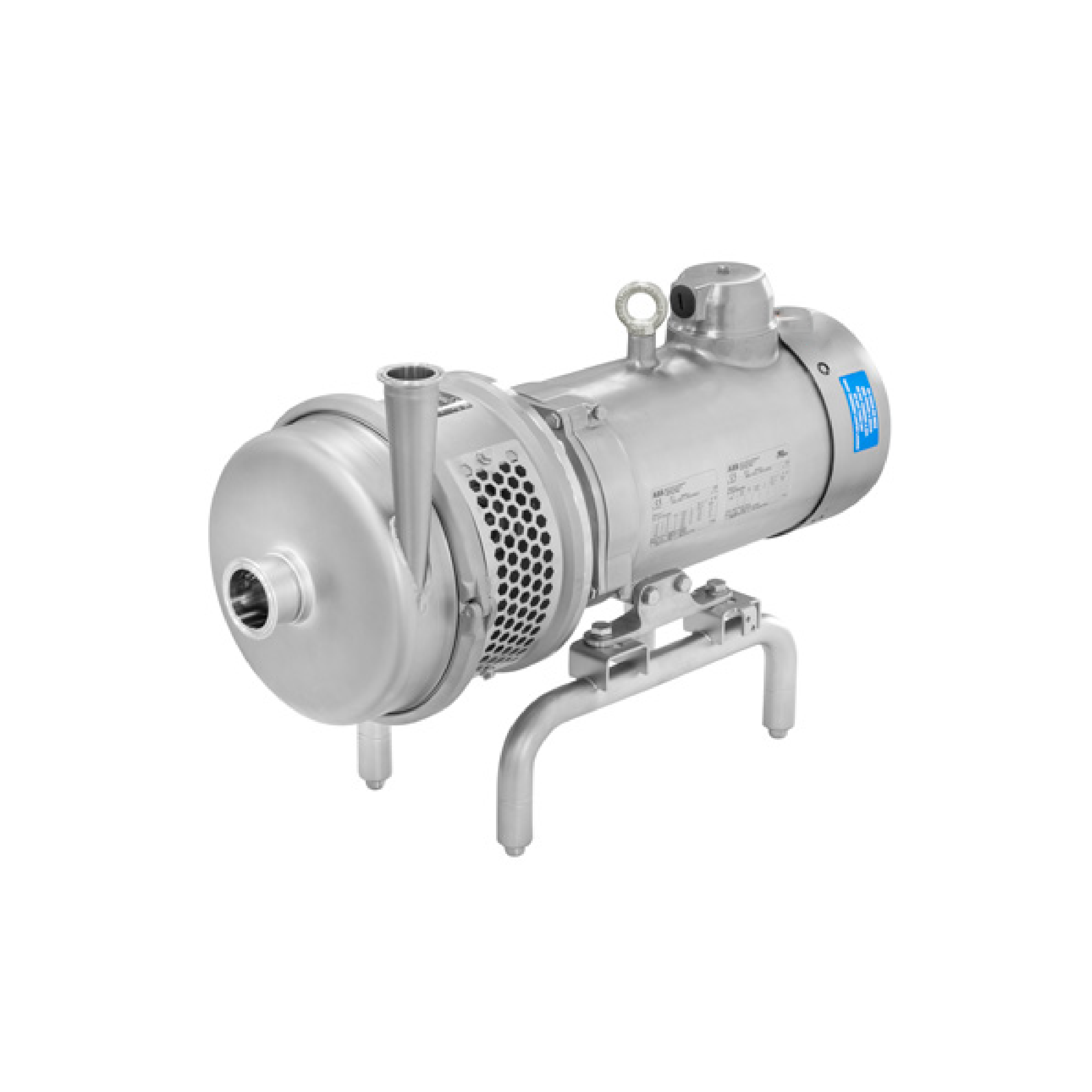

Centrifugal hygienic pump - Image 2

Centrifugal hygienic pump

  • The centrifugal pump is a hygienic design suitable for transporting pharmaceutical, food, and chemical such as (Medicines and cosmetics , Dairy, beverages and similar items) .
  • This pump is ideal for types of liquids, whether low or Medium viscosity In different forms depending on the nature of the product.
  • Automatic production lines require continuous pressure and pulling.
  • requires permanent sterilization or sensitivity to materials.
  • The pump  featured high efficiency, ease of use, and low maintenance.
Compare
Category: , , , , , ,

Technical Data

Style Pump body Productivity (L/h) Product viscosity (cps) Pump inlet and outlet Inlet and outlet diameter(Inch) pressure ranging (bar)
HCP-15 316L 130.000-140.000 1-10.00 clamp OD 1.5 5-7
HCP-20 316L 190.000-210.000 1-10.00 clamp OD 1.5 5-7
HCP-Prolac 316L 190.000-210.000 1-10.00 clamp OD 1.5-4 5-7

Recommendations:

  • Measured on water Actual productivity depends on product viscosity density and product conveying area  Productivity was calculated for water density.
  • The pump operates at a temperature ranging between: (-10/+90) ºC (The temperature varies depending on the type of gasket used)

Additional information

Type

HCP-15, HCP-20, HCP-Prolac

Option

  • SIC mechanical seal..
  • Pump body with double heating or cooling
  • Drain port.
  • Motor mounted on a wheeled
  • ATEX certification (for use in explosive environments).
