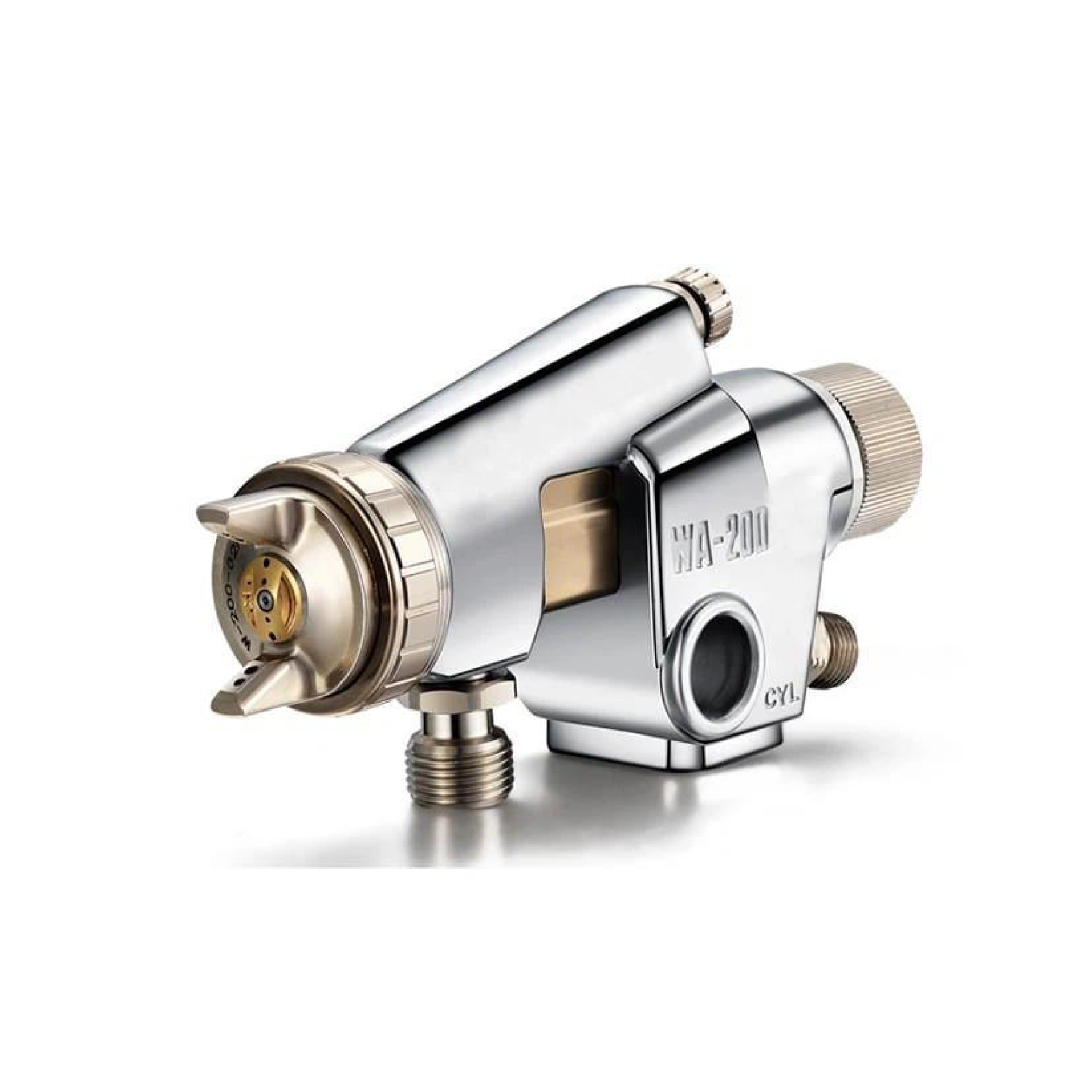

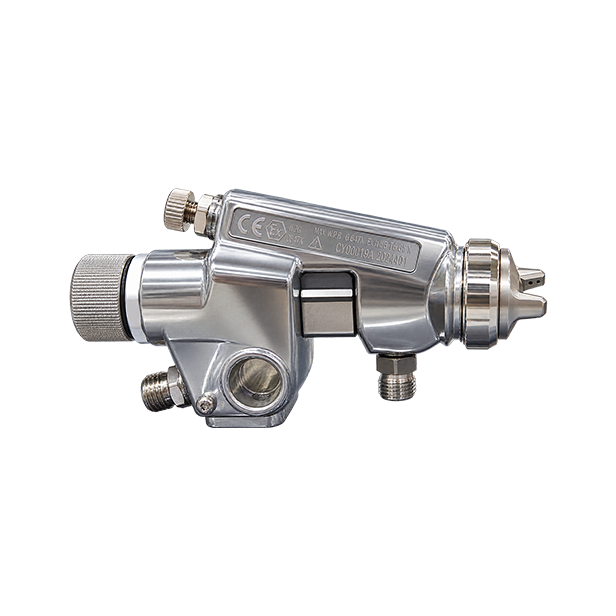

Air atomizing nozzles

  • Air atomizing nozzles require an air compressor to supply compressed air
  • The special internal structure of air atomizing nozzles is designed to evenly mix the liquid and air to produce a spray with fine droplets.
  • Each spray unit consists of an air cap and a liquid cap, and is capable of providing both fan and round spray patterns. The above components are interchangeable, while they they are for same body dimension and orifice diameter
  • Internal mix type: The airflow and liquid flow are not independent, changes in airflow will affect liquid flow
  • External mix type: Air and liquid flow can be controlled separately, without changing the liquid flow rate; adjusting only the airflow can control atomization.
Compare
Category: , ,

Technical Data

Style Painting feeding Method Orifice dia (mm) Spray distance (mm) Working pressure (Mpa) Air consumption (L/min) Liquid capacity (ml/min) Max spray width (mm)
AAN-1 Pressure/Siphon 1.0 200 0.29 270 200 220

Recommendations:

  • Other sizes are available upon request.

Additional information

Type

AAN-1
