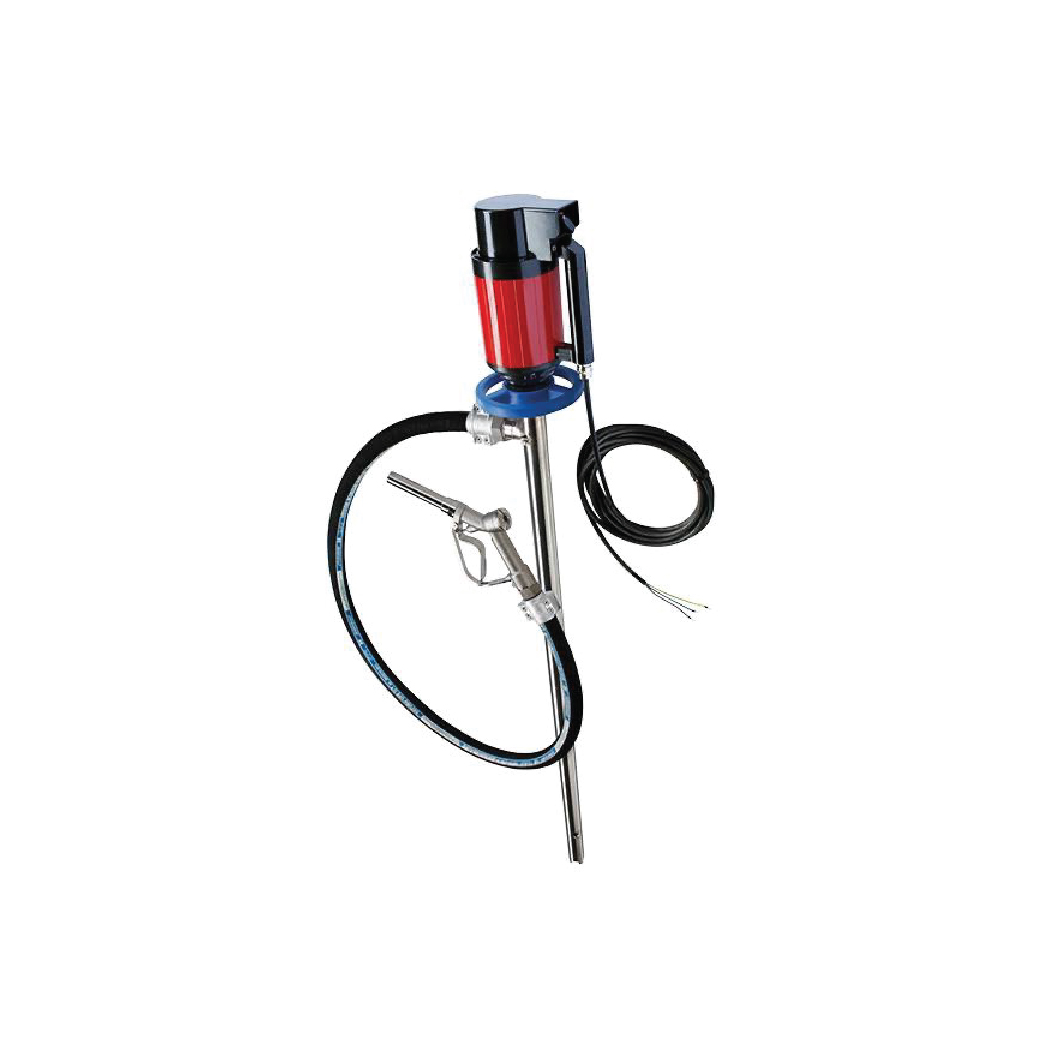

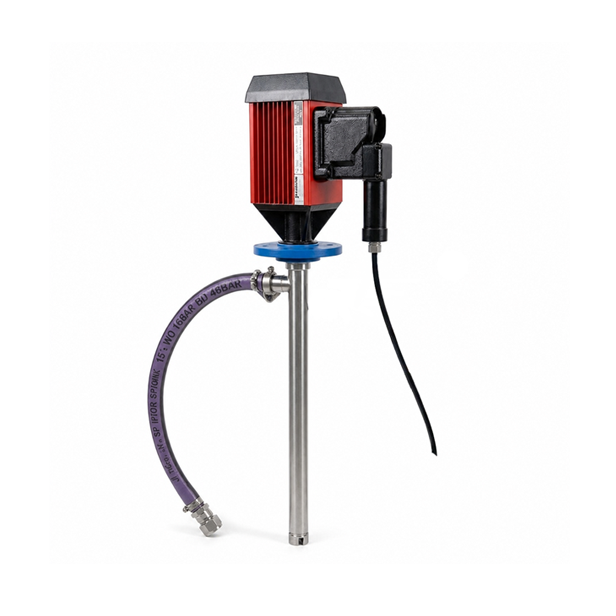

Drum pump LDV-EX

Drum pump LDV-EX

  • The drum pump is a hygienic design suitable for transporting pharmaceutical, food, and chemical such as (alcohol . Medicated ointments & creams, petroleum jelly, butter, juice concentrates, honey, wax and similar items) .
  • This pump is ideal for all types of liquids, whether low or high viscosity In different forms depending on the nature of the product .
  • The product is transferred through a pipe located inside the raw materials barrel (which you have).
  • This pump has an explosion-proof motor.
  • The pump  featured high efficiency, ease of use, and low maintenance.
Compare
Category: , , , , ,

Technical Data

Style Pump body Productivity (L/h) Product viscosity (cps) Pump inlet and outlet Inlet diameter(mm) Outlet

diameter (mm)

 pressure ranging (bar)
LDV- EX 280 316L 1.000-4.000 1-1000 threaded 41 25.4 0.5-1.5

Recommendations:

  • Measured on water Actual productivity depends on product viscosity density and product conveying area  Productivity was calculated for water density.
  • The pump operates at a temperature ranging between: (-10/+90) ºC (The temperature varies depending on the type of gasket used).

Option

  • Nozzle plastic : 1”.
  • PVDF hose: chemical resistant .
  • Hose connect :  stainless steel .

  • Grounding tweezers .
